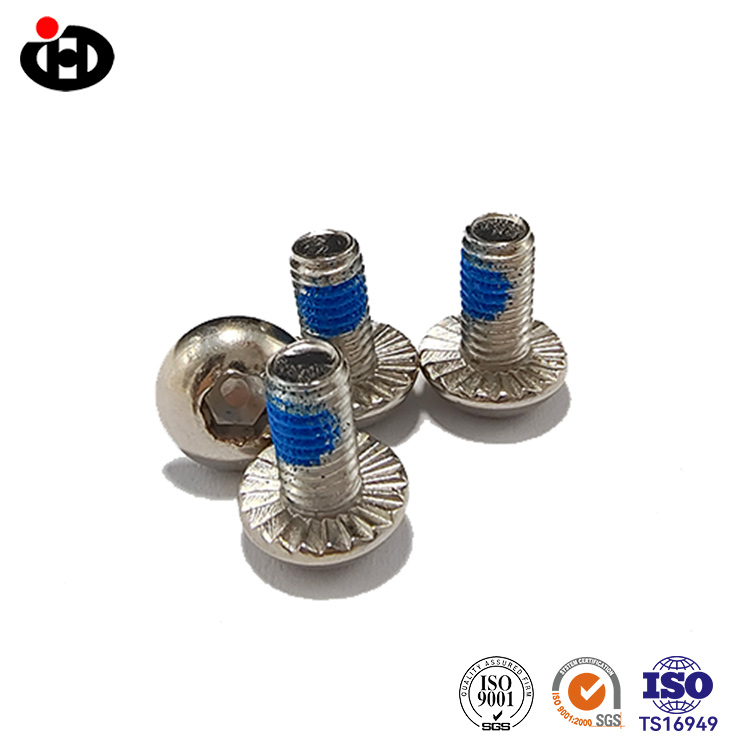

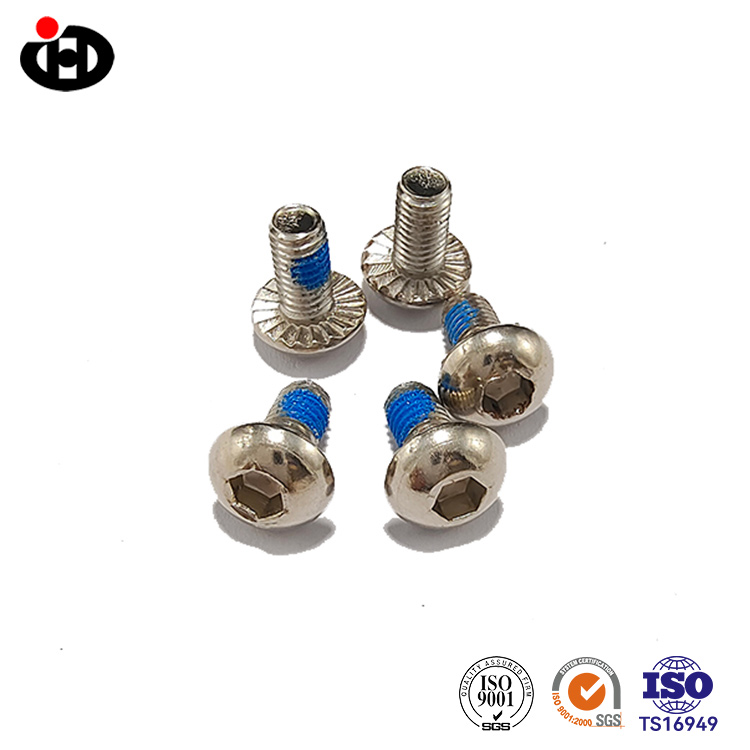

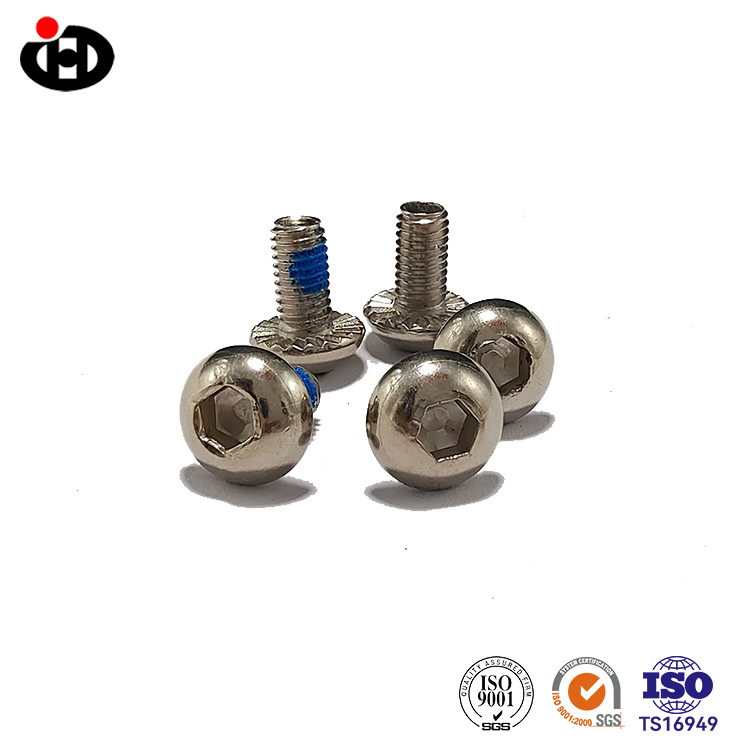

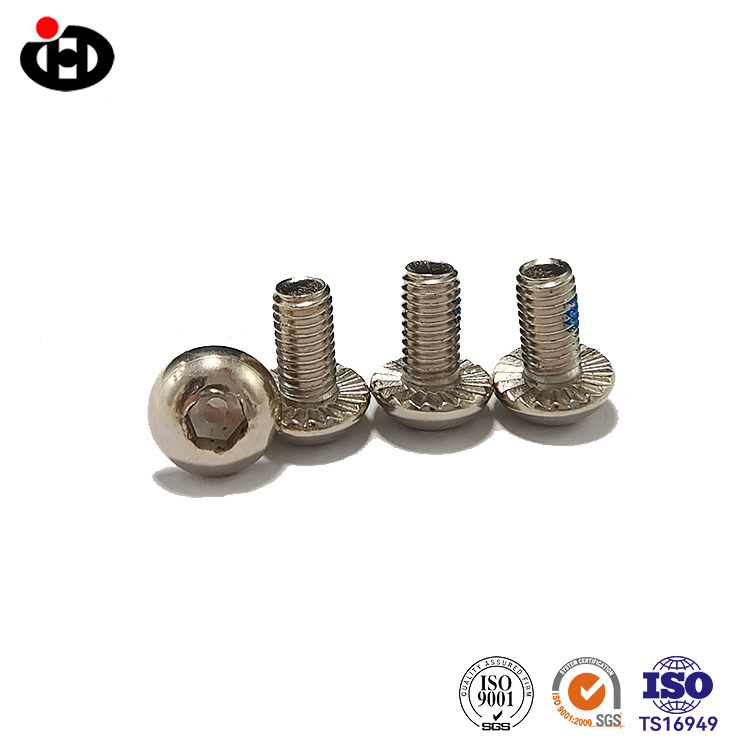

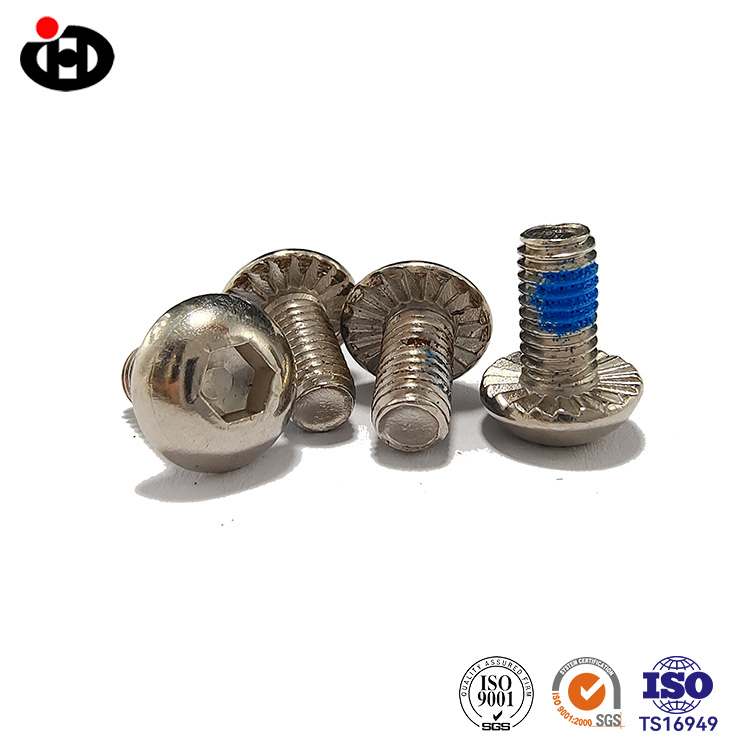

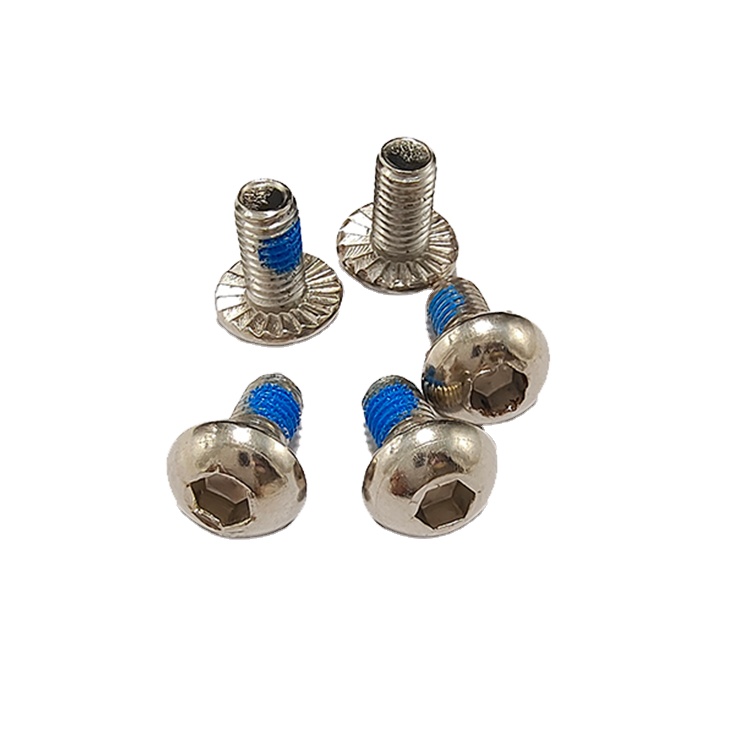

The Nylok Dome Head Screws features a precision machined circular tooth pattern at the bottom of the semi-circular head, which forms a physical locking structure after installation to resist lateral shear forces. It adopts imported anti drop coating technology, and the adhesive layer penetrates the thread micro gap under pre tightening force, forming a tough bonding layer after curing to resist axial vibration. The depth of the inner hexagonal drive groove is optimized to ensure that the tool fits well with the screw head.
The height of the semi-circular head can adapt to narrow installation spaces or curved fitting requirements. The tooth pattern texture on the screw head or rod is one of its major features. These teeth can increase the friction between the screw and the connected part, effectively preventing the screw from loosening in vibration or dynamic load environments. Whether used for components that withstand frequent vibrations in mechanical equipment or high-intensity vibration areas around automotive engines, the toothed structure can provide reliable anti loosening performance and ensure the stable operation of the system.
Jinghong manufacturer provides a special surface treatment technology called "Nailuo Te Jiao", which forms a layer of adhesive layer on the surface of screws with characteristics such as anti loosening, leak proof, and corrosion resistance. This layer of adhesive will be crushed during the screw tightening process, filling the small gap between the screw and the connected part, enhancing the sealing performance, and preventing the leakage of liquids or gases.

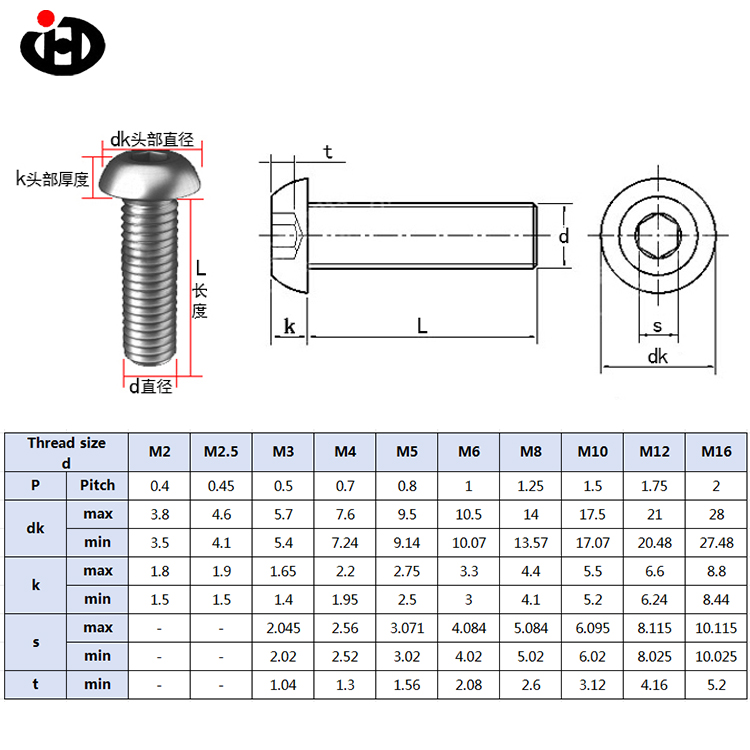

Name | Nylok Dome Head Screws |
Material | Stainless steel |
Standards | GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing |
Thread | Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF. |
Sizes | M2-M16Metc |
Finish | Black/Plain/Nylok/others |
Price | 0.03usd/pcs-0.50usd/pcs |
MOQ | Stardard item(Usually little hundred-little thousand)/determined if non-standard |
Jinghong Company offers a wide range of product choices, covering different types, sizes, and uses of products that can meet various industrial and commercial needs. Jinghong has advanced manufacturing equipment and precise manufacturing processes, which can ensure the dimensional accuracy and quality stability of products, thereby providing reliable performance. Please rest assured when choosing.
Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.
