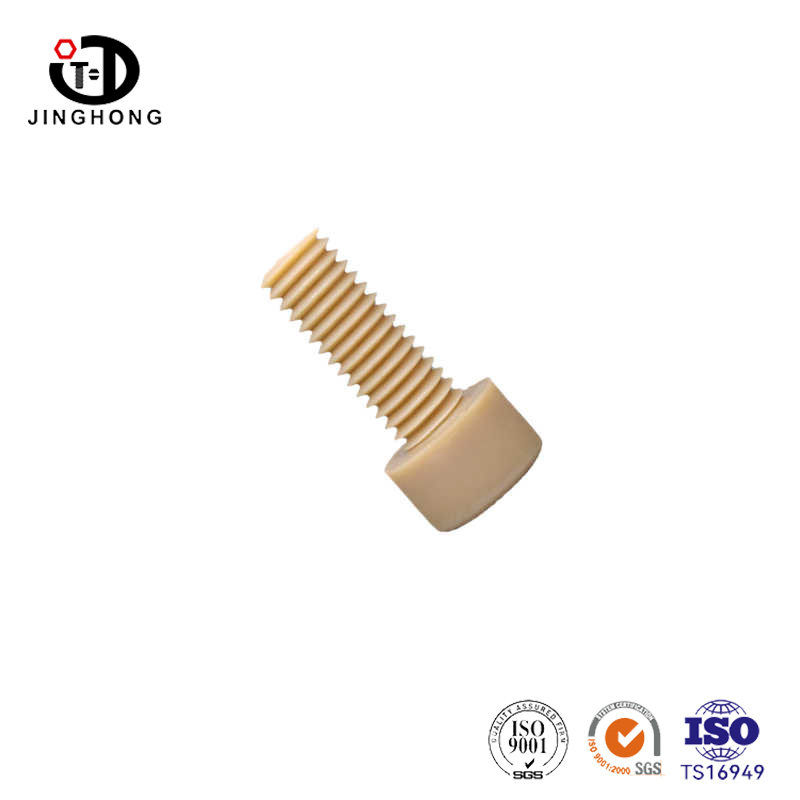

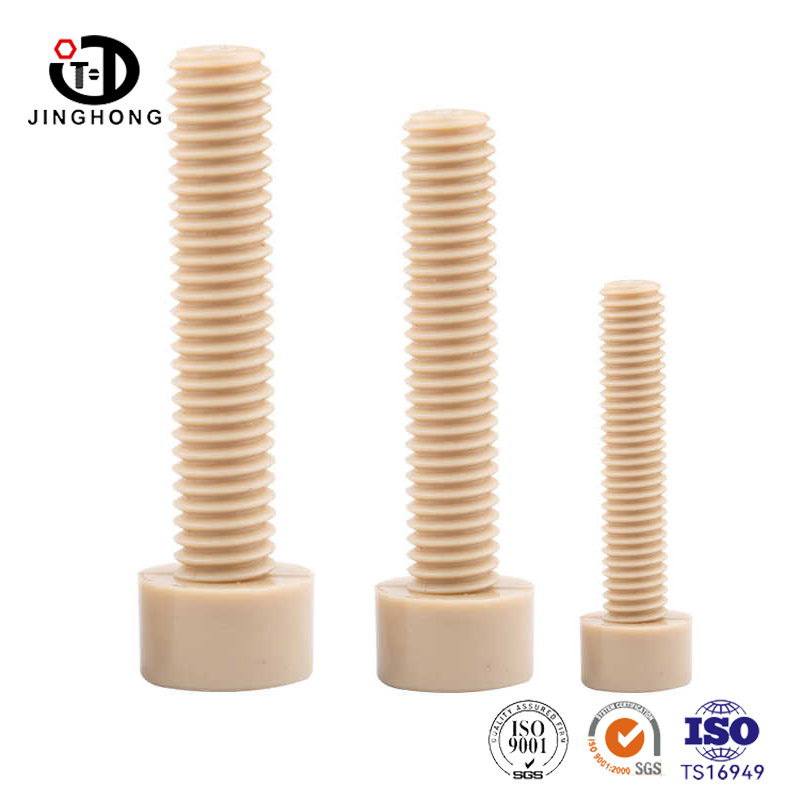

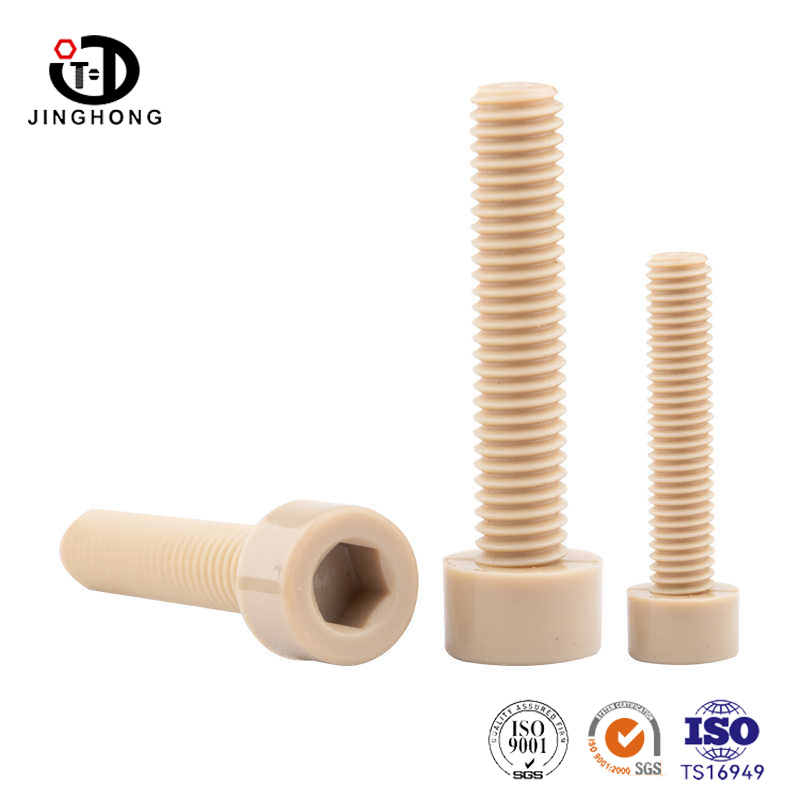

PEEK Hexagonal Socket Cup Head Bolt

In precision manufacturing, high-end equipment, and special environmental applications, the performance of fasteners directly determines the reliability of the system. PEEK Hexagonal Socket Cup Head Bolt, with its core advantages of high temperature resistance, corrosion resistance, lightweight, and insulation, has become an ideal solution for replacing metal fasteners in semiconductor equipment, chemical equipment, aerospace and other fields.

Send Inquiry

Product Description

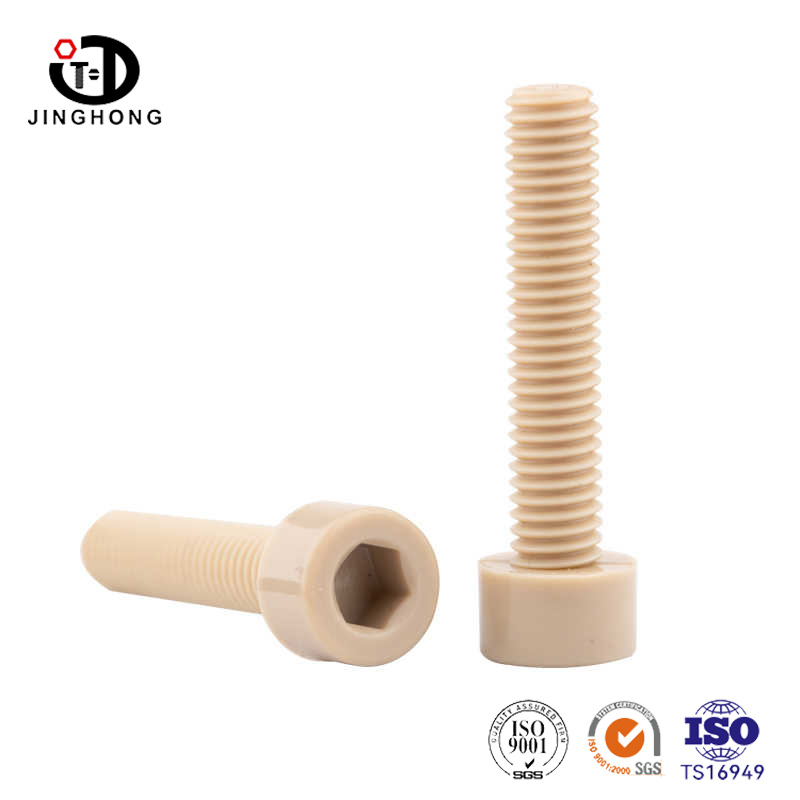

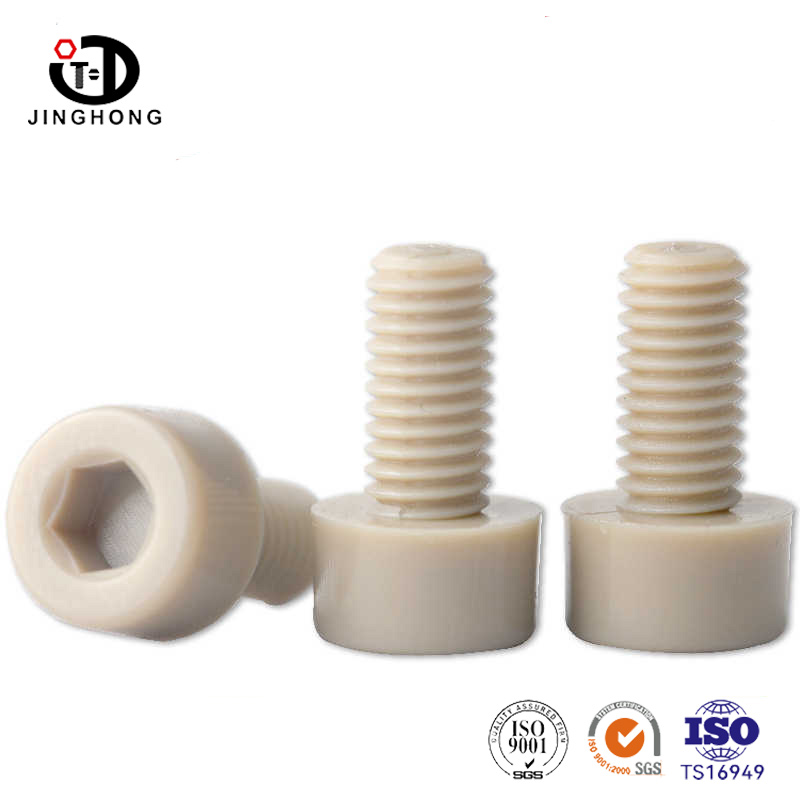

The appearance of PEEK Hexagonal Socket Cup Head Bolt combines the rigor of precision manufacturing with the texture requirements of high-end applications. The head is polished with a smooth and burr free surface, and the edge of the head is rounded to avoid scratching the operator or equipment surface during installation. The depth of the head groove is precise and compatible with standard hex wrenches, ensuring efficient force application in narrow spaces.

Pure PEEK material presents a natural semi transparent amber color, with excellent transparency and a warm texture. The bolt thread adopts precision rolling forming technology, with full thread shape, no broken teeth or burrs, ensuring perfect fit with the nut or internal thread, and avoiding loosening or jamming problems caused by thread defects.

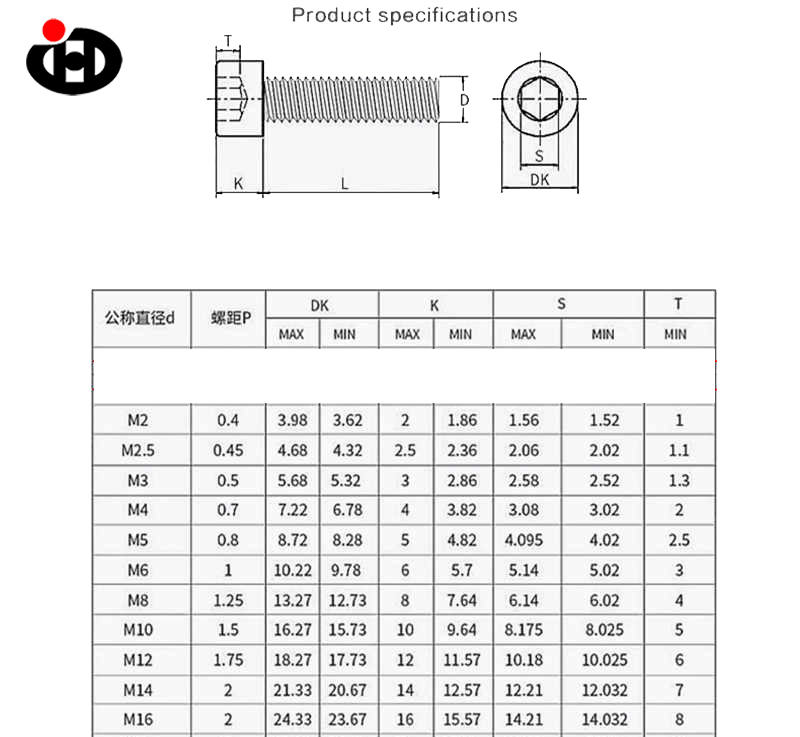

Name	PEEK Hexagonal Socket Cup Head Bolt
Material	PEEK
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M2-M16Metc
Finish	Plain/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard
