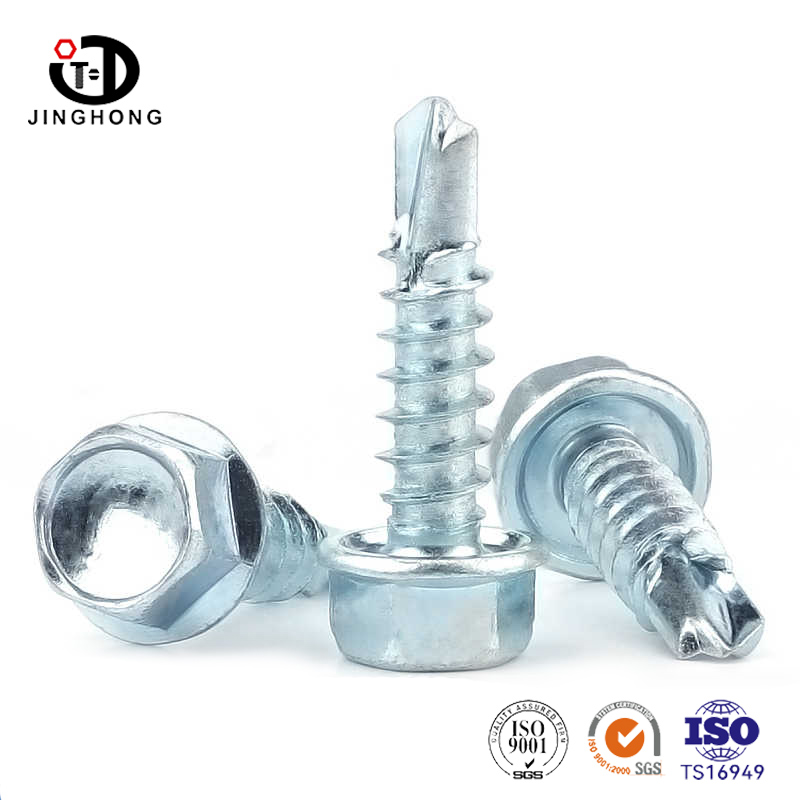

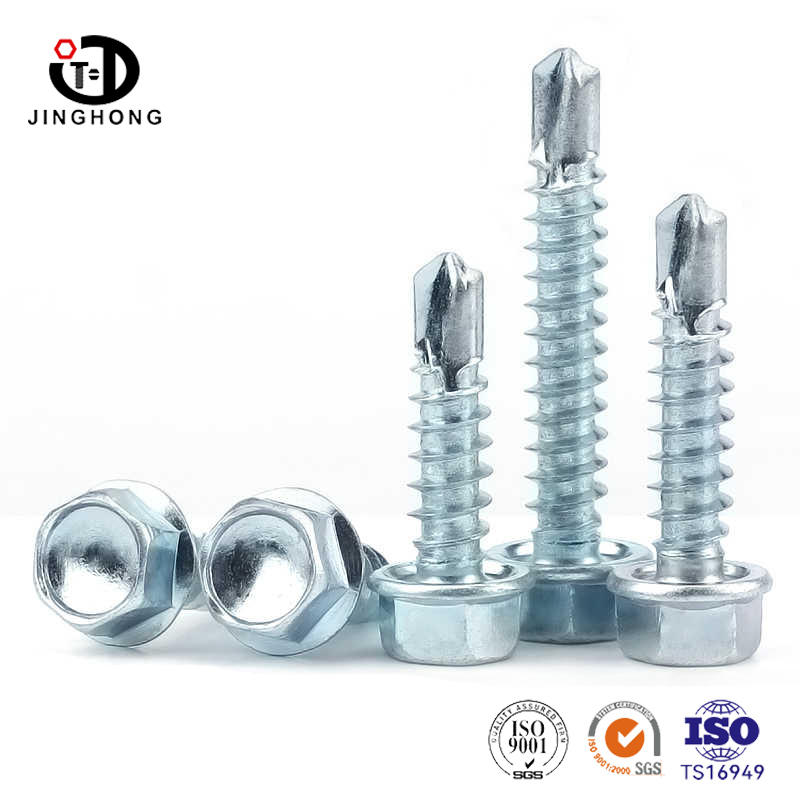

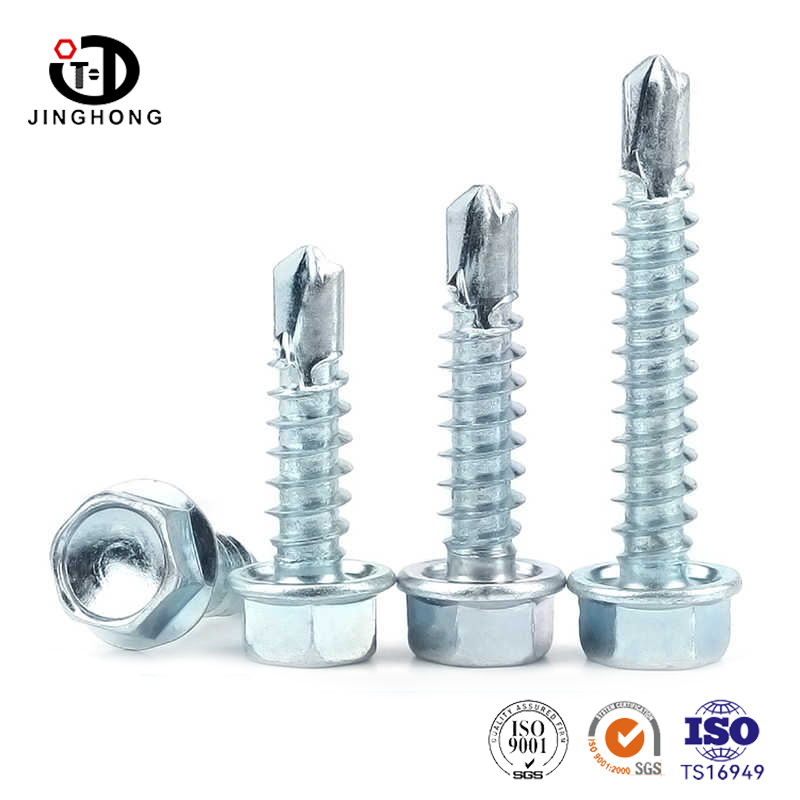

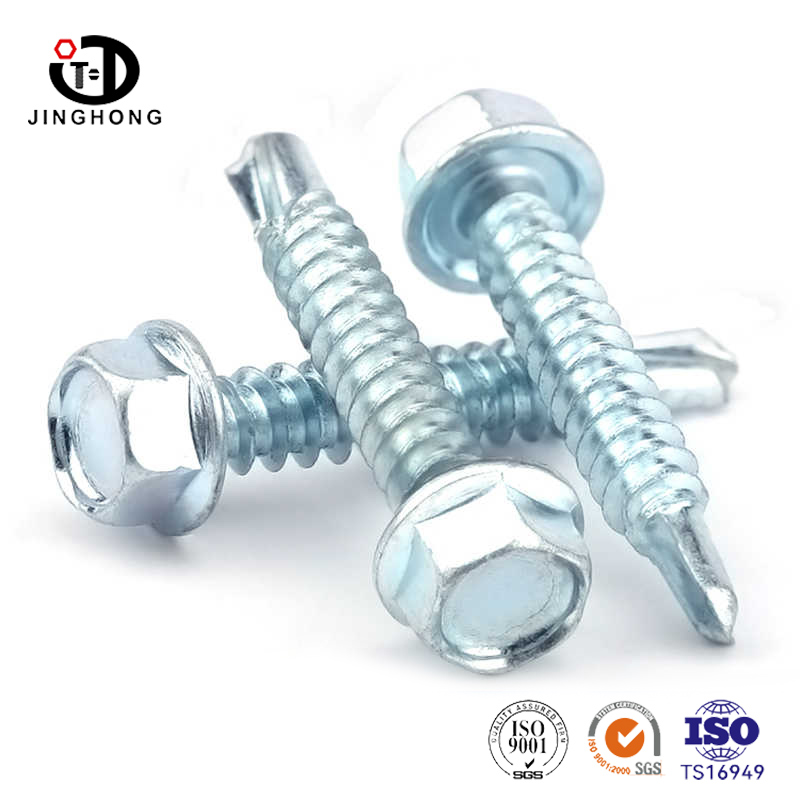

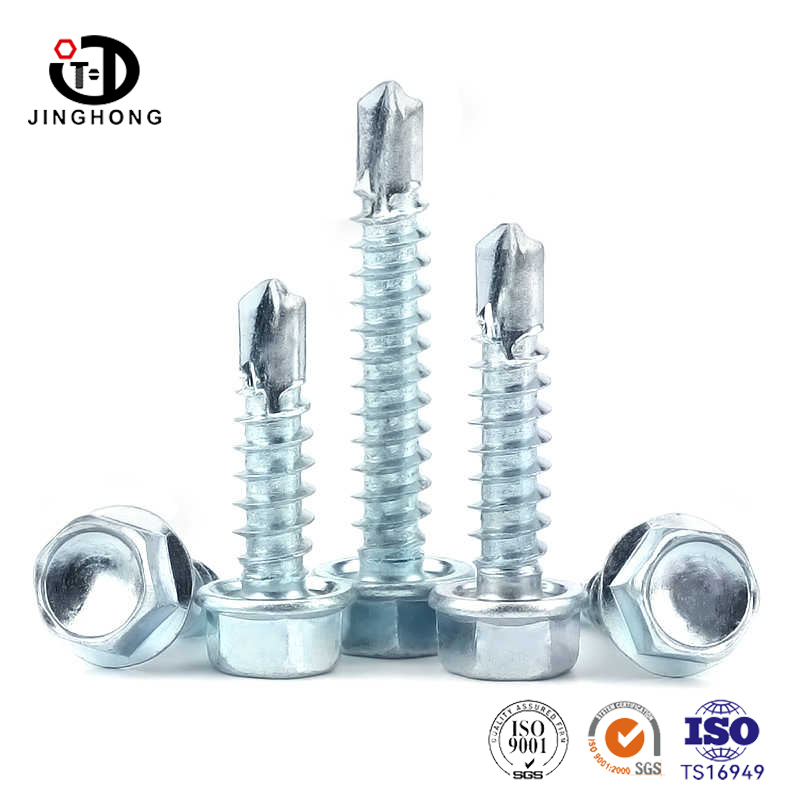

Self Drilling Tech Screws combines a hexagonal head with a flange and is equipped with a self drilling tip, achieving integrated operation from positioning to fastening. This design greatly simplifies the installation process, reduces the dual steps of drilling and tapping, and improves construction efficiency. The wide flange provides a larger load-bearing area, effectively dispersing the pressure during fastening, enhancing the stability and reliability of the connection.
Zinc coating is achieved through advanced electroplating technology, which evenly adheres the zinc layer to the surface of the screw, forming a barrier that is both beautiful and protective. The color matching not only gives the screw a perfect appearance, but more importantly, it enhances the corrosion resistance of the screw, prolongs the service life of the product, and adapts to a wider range of environmental conditions.
Zinc coating is a common surface treatment method, which also includes spraying. Among them, environmentally friendly electroplating treatments such as environmentally friendly blue zinc, environmentally friendly color zinc, environmentally friendly nickel, environmentally friendly white zinc, etc. are widely favored by the market. The environmental protection concept is in line with the current international concept of harmonious coexistence between humans and nature.

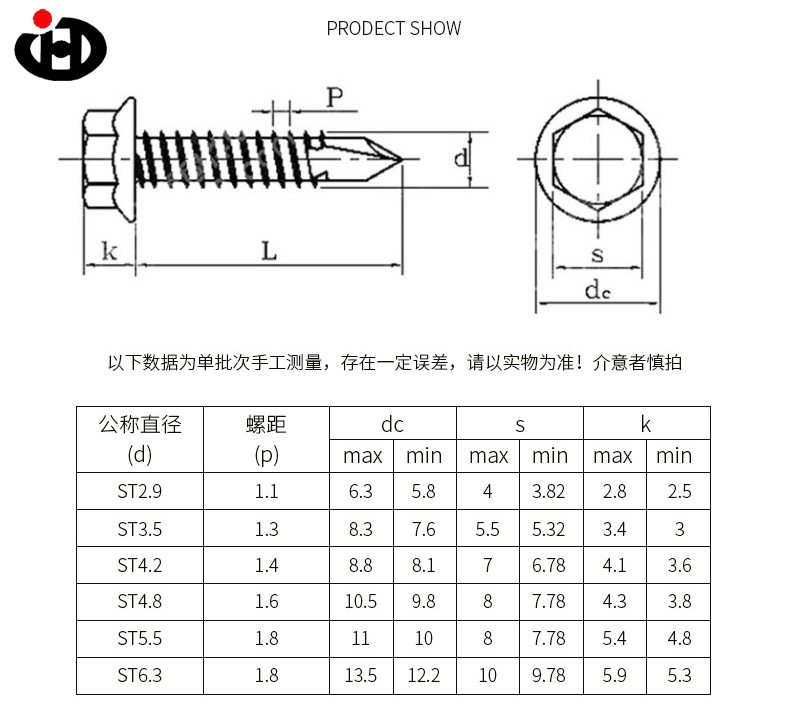

Name | Self Drilling Tech Screws |
Material | Carbon Steel |
Standards | GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing |
Thread | Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF. |
Sizes | ST2.9-ST6.3Metc |
Finish | Zinc plated/others |
Price | 0.04usd/pcs-0.50usd/pcs |
MOQ | Stardard item(Usually little hundred-little thousand)/determined if non-standard |
From raw material procurement to product delivery, every process of Jinghong manufacturer undergoes strict quality inspection to ensure that every screw meets or exceeds industry standards. At the same time, Jinghong Factory provides diversified customized services such as length, diameter, and material to meet the specific needs of different customers. We have established an efficient customer service system to ensure timely response to customer inquiries, order processing, after-sales support, and other needs. We also have a professional technical team to provide customers with comprehensive support such as product consultation.
